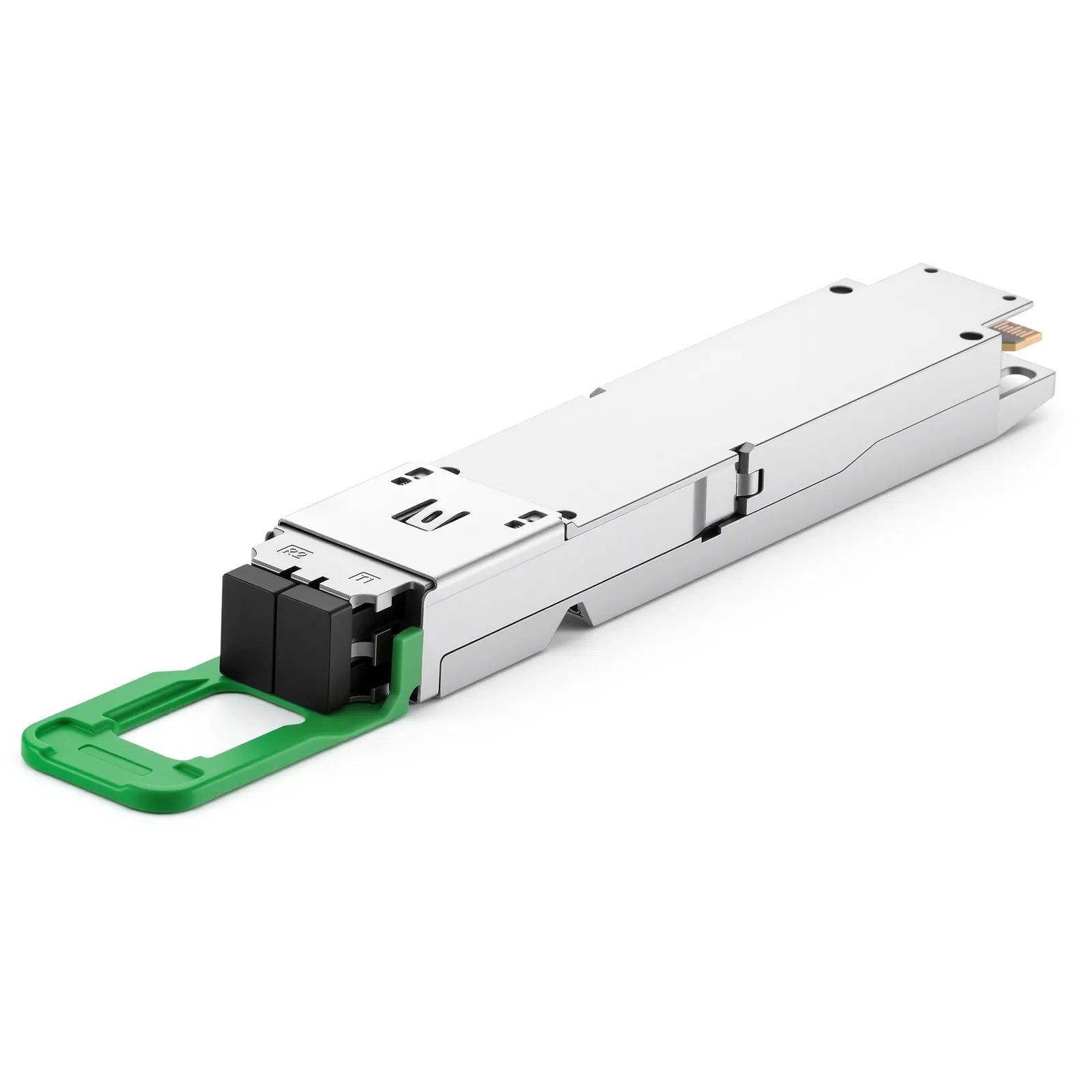

NVIDIA/Mellanox MMS4A50-XM (980-9IAS0-00XM00) Compatible 1.6T 2x FR4 Twin-port OSFP IHS/Closed Finned Top PAM4 1310nm 2km Dual Duplex LC/UPC SMF DDM InfiniBand XDR Optical Transceiver Module for Quantum-X800 Air Cooled Switches
P/N: HO-1.6T-OSFP-2FR4-IHS
🔁Compatible Alternatives
Product Details
NVIDIA/Mellanox MMS4A50-XM (980-9IAS0-00XM00) Compatible 1.6T 2x 800G FR4 OSFP IHS/Closed Finned Top PAM4 Twin-port Optical Transceiver Module (1310nm, 2km, 2x Duplex LC/UPC Connectors, SMF, 0℃ to +70℃, DDM)
NVIDIA/Mellanox MMS4A50-XM (980-9IAS0-00XM00) compatible 1.6T OSFP 2x FR4 is an Infiniband twin-port transceiver module with dual duplex LC/UPC connectors at 800Gb/s each. It enables the fiber link of 2km at 2x800Gb/s over single-mode fiber (SMF). With the Pulse-amplitude Modulation (PAM4) modulation, the Fixed Reach 4-channel (FR4) OSFP adopts 8-channels of 200G-PAM4 electrical modulation and two ports of 4-channel 200G-PAM4 optical Serial Multiplexed modulation.
The 1.6T 2FR4 OSFP supports InfiniBand XDR end-to-end systems. Designed for supercomputing and HPC, the main application of this 1.6T OSFP transceiver is to link two 1.6T (2x800G) switches (i.e. Quantum-X800 Q3200-RA, Q3400-RA) together up to 2 kilometers. Its OSFP-IHS/Closed Finned Top structure is designed for Quantum-3 Quantum-X800 air-cooled switches.
Specifications
Part Number
HO-1.6T-OSFP-2FR4-IHS
Data Rate
1.6T
Form Factor
Twin-port OSFP-IHS/Closed Finned Top
Distance
2km
Wavelength
1271nm, 1291nm, 1311nm, 1331nm
Media
SMF
Connector
Dual Duplex LC
Source
EML+PIN or SiPh+DSP
TX Power
-2.2~4.9dBm
Receiver Sensitivity
-6.2dBm
DDM/DOM
Supported
Temperature Range
0-70℃
Quality Assurance
Excellent quality is the foundation of Hooptic’s survival and development. Our operation team are experts with many years’ experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and reliability. E3-Link adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Mechanical Impact
Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleEMI Testing
Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleMTBF Testing
MTBF(Mean Time Between Failures)testing ensures high stability
