MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module
25G SFP28 CWDM 1270-1370nm 10km Optical Transceiver Module
P/N: HO-CW-SFP28-LR-XX
🔁Compatible Alternatives
Product Details

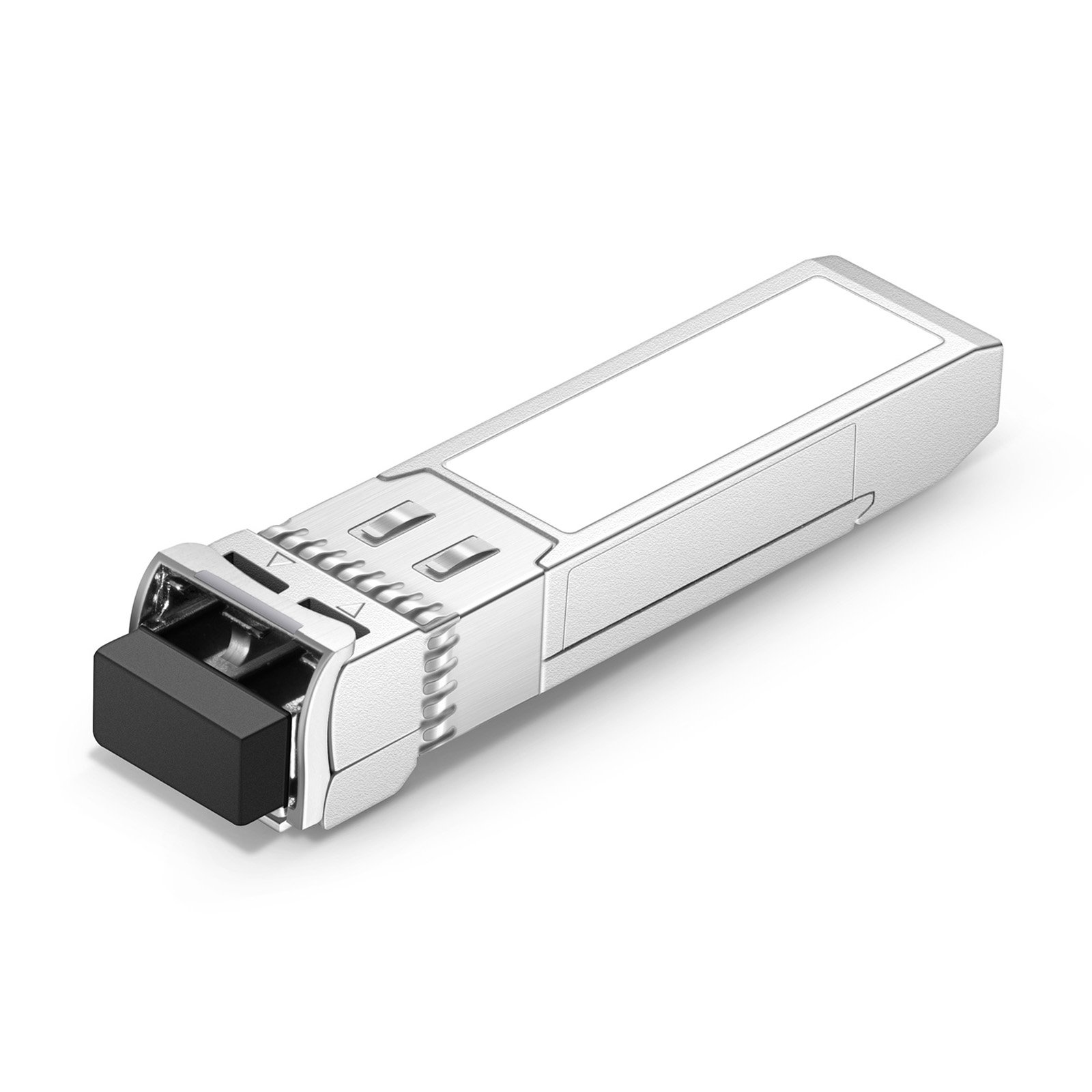

25G 1270-1370nm CWDM SFP28 10km Optical Transceiver Module (SMF, 1270-1370nm, 10km, LC, DDM)
The HO-CW-SFP28-LR-XX compatible SFP28 optical transceiver is equipped with an LC duplex connector, reaching a link up to 10km over G.652/655. QSFPTEK manufactured 25GBase-CWDM SFP28 transceiver module is compliant with the SFP28 MSA and be fully compatible with most Cisco devices. This 25G CWDM SFP28 module, operating at a CWDM wavelength from 1270nm to 1370nm as specified by the ITU-T, is designed to deploy in the CWDM networking equipment in the metropolitan access networks or 5G prequel.
Specifications
Part Number
HO-CW-SFP28-LR-XX
Data Rate
25G
Form Factor
SFP28
Distance
10KM
Wavelength
1270-1370nm
Media
SMF
Connector
LC Duplex
Source
DFB+PIN
TX Power
-7~+2dBm
Receiver Sensitivity
-14dBm
DDM/DOM
Supported
Temperature Range
0-70℃
Quality Assurance
Excellent quality is the foundation of Hooptic’s survival and development. Our operation team are experts with many years’ experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and reliability. E3-Link adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Mechanical Impact
Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleEMI Testing
Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleMTBF Testing
MTBF(Mean Time Between Failures)testing ensures high stability
