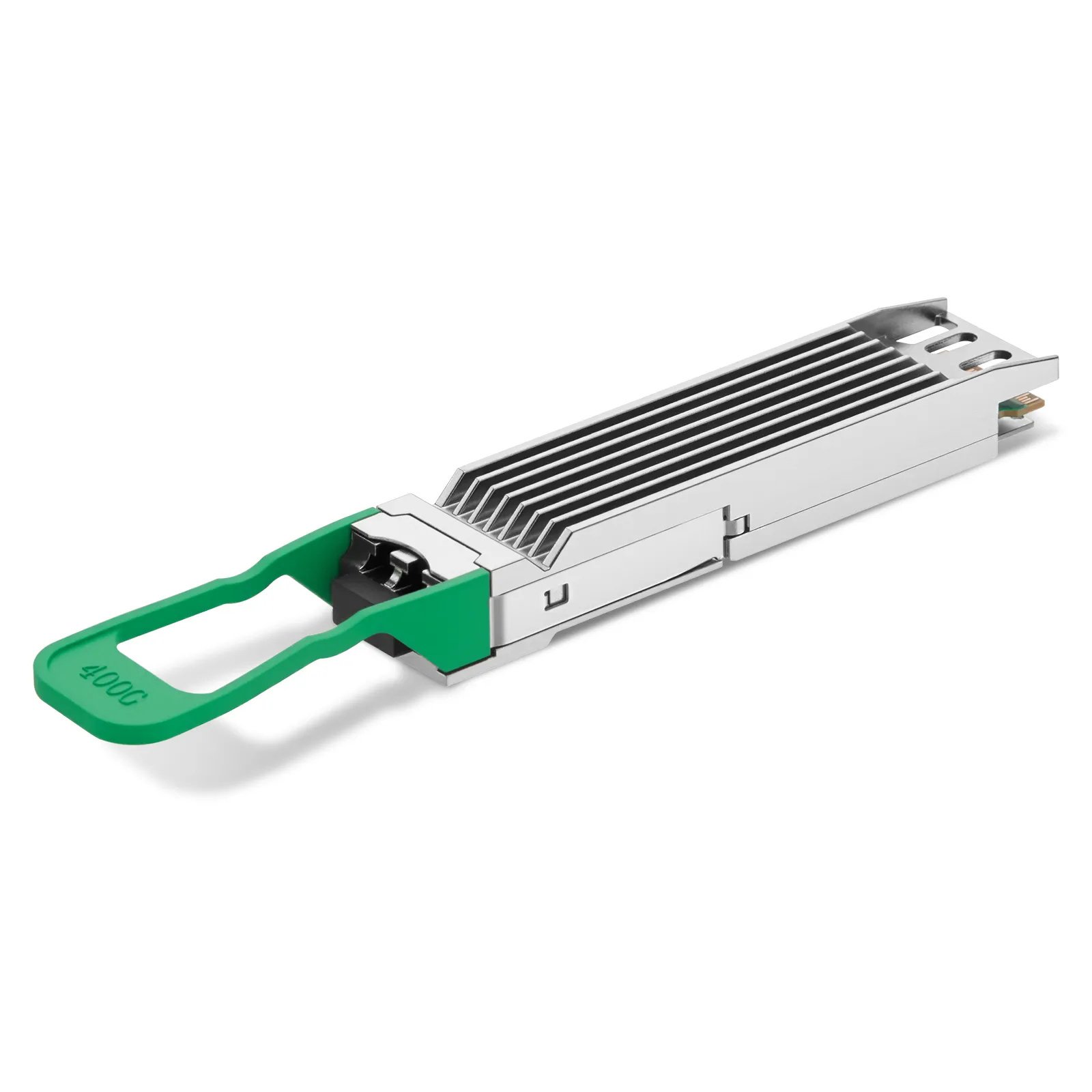

400GBASE-FR4 OSFP IHS/Finned Top PAM4 1310nm 2km DDM Duplex LC/UPC SMF Ethernet Optical Transceiver Module
P/N: HO-OSFP-400G-FR4
🔁Compatible Alternatives
Product Details
400GBASE-FR4 OSFP IHS/Finned Top PAM4 Optical Transceiver Module (1310nm, 2km, Single-Port Duplex LC/UPC Connector, SMF, 0℃ to +70℃, DDM)
The 400GBASE-FR4 OSFP is a finned top transceiver module for use in 400 Gigabit Ethernet links up to 2km over OS2 singlemode fiber (SMF). The OSFP-IHS designed with Integrated Heat Sink (IHS) is for Ethernet air-cooled switches. It supports a max data rate of 425 Gbps with a single 4-channel duplex LC/UPC optical connector. Adopting the Pulse-amplitude Modulation (PAM4) electrical and optical modulation, the Fixed Reach 4-channel (FR4) OSFP achieves 400 Gigabit Ethernet through 4-channels of 100G-PAM4. Hooptic manufactured FR4 OSFP complies with 400G Ethernet, OSFP MSA, CMIS 4.0, RoHS, IEEE 802.3cu, IEEE 802.3bs. The DDM (digital diagnostics monitoring) function is supported on the 400G fiber optic transceiver to achieve real-time operating parameters monitoring.
Specifications
Part Number
HO-OSFP-400G-FR4
Data Rate
400G
Form Factor
OSFP
Distance
2km
Wavelength
1271nm,1291nm,1311nm,1331nm
Media
SMF
Connector
Duplex LC
Source
CWDM EML + PIN
TX Power
-4.2~4.7dBm
Receiver Sensitivity
-8.2dbm
DDM/DOM
Supported
Temperature Range
0-70℃
Quality Assurance
Excellent quality is the foundation of Hooptic’s survival and development. Our operation team are experts with many years’ experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and reliability. E3-Link adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Mechanical Impact
Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleEMI Testing
Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleMTBF Testing
MTBF(Mean Time Between Failures)testing ensures high stability
