MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module

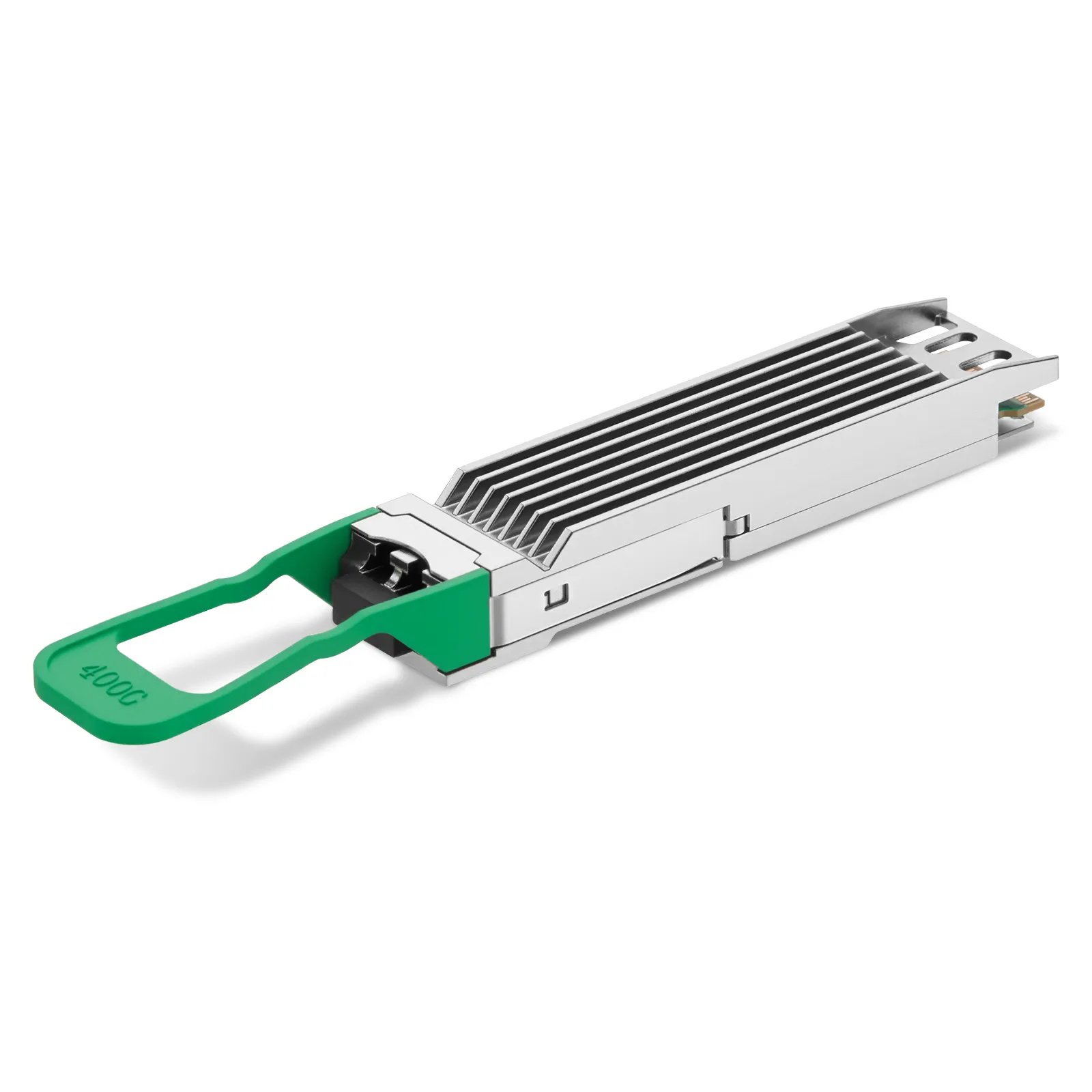

400GBASE-LR4 OSFP Finned Top PAM4 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module
P/N: HO-OSFP-400G-LR4
🔁Compatible Alternatives
Product Details
400GBASE-LR4 OSFP PAM4 Optical Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 10km, Duplex LC/UPC, DOM, Finned Top)
The 400GBASE LR4 OSFP optical transceiver module is designed for 400GBASE Ethernet throughput up to 10km link lengths over OS2 single-mode fibre (SMF) via duplex LC/UPC connectors. This transceiver is compliant with OSFP MSA, IEEE 802.3 bs-400GAUI-8, IEEE 802.3 cu, and CMIS4.0 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parametres.
The single-port OSFP finned-top transceiver is used in Ethernet air-cooled switches. Featuring low latency, low power, and reliability, it supports uplink connections in spine-leaf architectures, such as from a 400G switch to a 400G switch and an 800G switch to a 400G switch. It is the ideal solution for HPC computing, AI, and cloud data centres.
Specifications
Part Number
HO-OSFP-400G-LR4
Data Rate
400G
Form Factor
OSFP
Distance
10km
Wavelength
1271nm, 1291nm, 1311nm, 1331nm
Media
SMF
Connector
Duplex LC
Source
CWDM EML + PIN
TX Power
-1.4~4.5dBm
Receiver Sensitivity
-7.7dbm
DDM/DOM
Supported
Temperature Range
0-70℃
Quality Assurance
Excellent quality is the foundation of Hooptic’s survival and development. Our operation team are experts with many years’ experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and reliability. E3-Link adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Mechanical Impact
Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleEMI Testing
Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleMTBF Testing
MTBF(Mean Time Between Failures)testing ensures high stability
