MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module

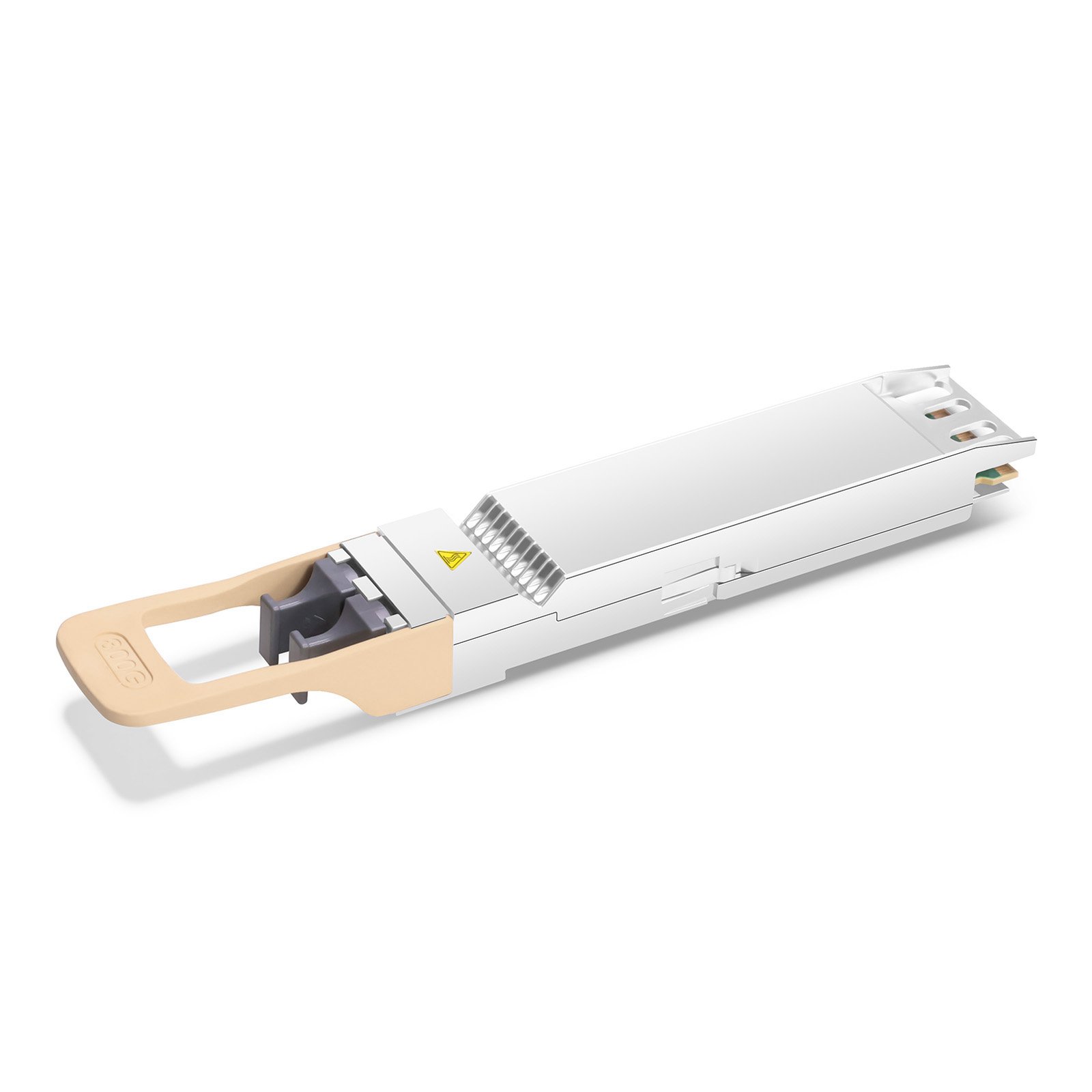

800GBASE-SR8 (2x400G SR4) Twin-port OSFP IHS/Closed Finned Top PAM4 850nm 100m Dual MPO-12/APC DDM MMF Optical Transceiver Module for Ethernet and InfiniBand Applications
P/N: HO-OSFP-800G-2SR4
🔁Compatible Alternatives
Product Details
800GBASE-SR8 (2x400G SR4) OSFP Finned Top PAM4 Optical Transceiver Module (850nm, 100m, 2x MPO-12/APC Connectors, MMF, 0℃ to +70℃, DDM)
The HO-OSFP-800G-2SR4 Compatible 800G OSFP SR8 (2x400G SR4) transceiver module supports a max data rate of 850Gbps. It enables the fiber link of 50m over multi-mode fiber (MMF) with dual MPO-12 APC connectors. QSFPTEK manufactured 800GBASE-SR8 (2x 400GBASE SR4) OSFP complies with IEEE 802.3-2022 8x100GBASE-VR1 optical interface, IEEE 802.3ck-2022 8x100GAUI-1 C2M electrical interface, OSFP MSA Specification Rev 5.0 Type 2, CMIS Rev 5.0.
DDM (digital diagnostics monitoring) function is supported on the 800G fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the SR8 OSFP achieves 800 Gigabit Ethernet through 8x 106.25 PAM4. The 800G SR8 OSFP is widely used for 800 gigabit Ethernet, 800G to 2x 400GBASE-SR4 breakout, data center and InfiniBand NDR applications.
Specifications
Part Number
HO-OSFP-800G-2SR4
Data Rate
800G
Form Factor
Twin-port OSFP
Distance
100m
Wavelength
850nm
Media
MMF
Connector
Dual Duplex LC
Source
VCSEL+PIN
TX Power
-4.6~4.0dBm
Receiver Sensitivity
-6.4dBm
DDM/DOM
Supported
Temperature Range
0-70℃
Quality Assurance
Excellent quality is the foundation of Hooptic’s survival and development. Our operation team are experts with many years’ experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and reliability. E3-Link adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Mechanical Impact
Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleEMI Testing
Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleMTBF Testing
MTBF(Mean Time Between Failures)testing ensures high stability
