Temperature Impact
High and low-temperature cycle, aging test to ensure good temperature characteristics
MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module
800G OSFP-800G-LR8 Optical Transceiver 8x100G LR PAM4 1310nm MPO-16 10km SMF
P/N: HO-OSFP-800G-LR8
🔁Compatible Alternatives
Product Details

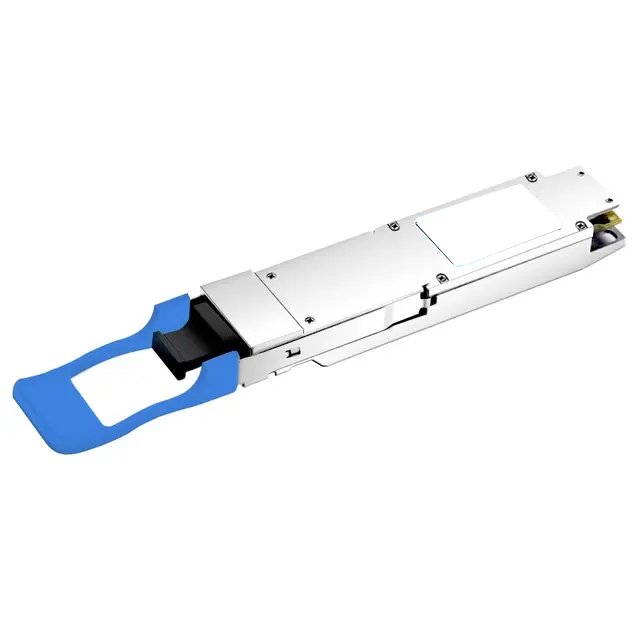

800G OSFP-800G-LR8 OSFP Optical Transceiver Module 1310nm MPO-16 SMF 10km DDM
The HO-OSFP-800G-LR8 is an optical transceiver module for 800 Gigabit Ethernet connections over 10 km of single-mode fiber. Featuring 8 independent channels at 106.25Gbps each, it is suitable for data center applications. It includes a PAM4 re-timer ASIC, silicon photonic laser, and photodiodes, operating on the 1310nm ITU G.694.2 CWDM grid.
Specifications
Part Number
HO-OSFP-800G-LR8
Data Rate
800G
Form Factor
OSFP
Distance
10km
Wavelength
1310nm
Media
SMF
Connector
MTP/MPO-16
Source
EML + PIN
TX Power
-1.4~4.5dBm
Receiver Sensitivity
-7.7dBm
DDM/DOM
SupportedSupported
Temperature Range
0-70℃
Quality Assurance
Excellent quality is the foundation of Hooptic’s survival and development. Our operation team are experts with many years’ experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and reliability. E3-Link adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Mechanical Impact
Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleEMI Testing
Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleMTBF Testing
MTBF(Mean Time Between Failures)testing ensures high stability
