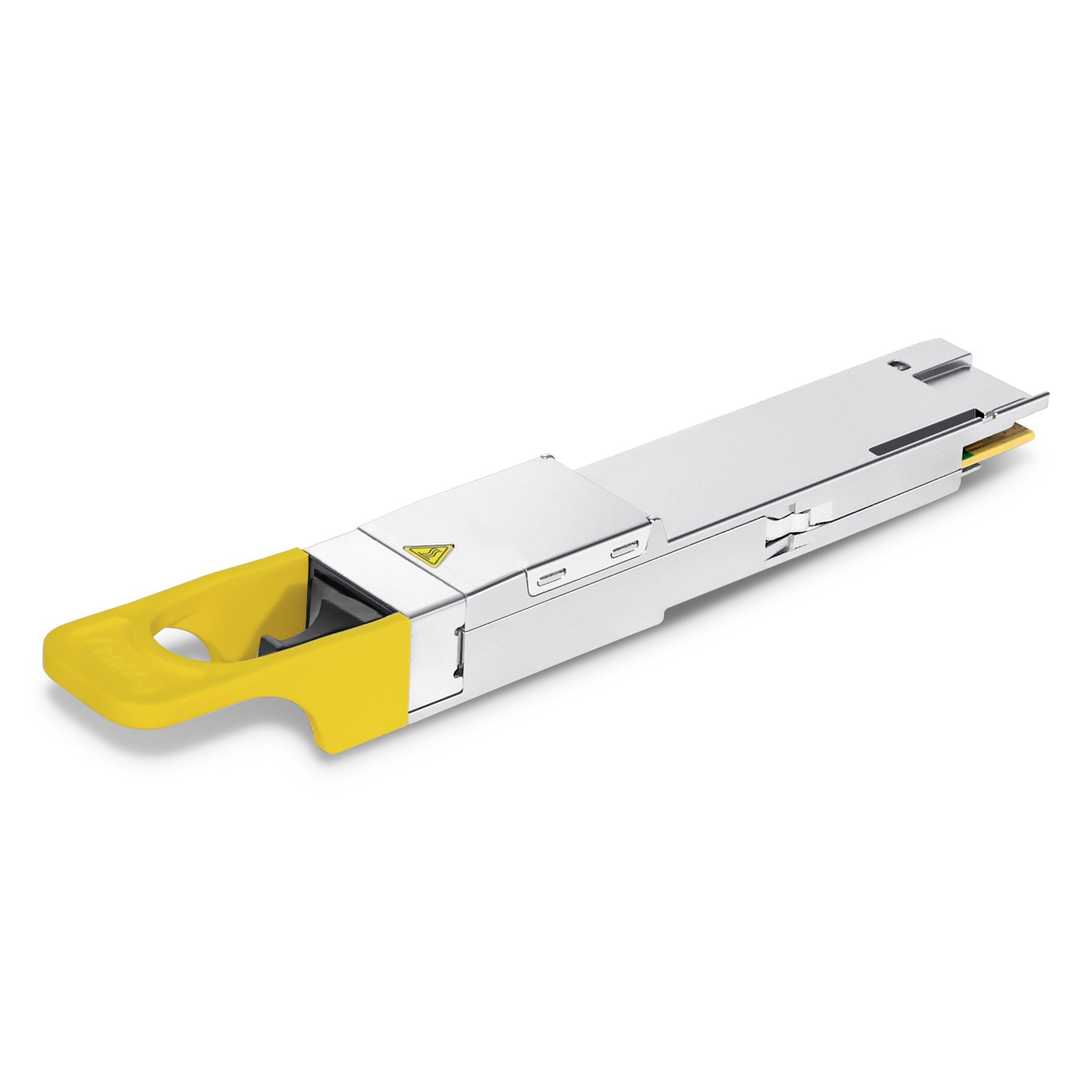

NVIDIA/Mellanox MMS4A20-XM800 (980-9IAT0-00XM00) kompatibles 800GBASE-DR4 OSFP224 RHS/Flat Top PAM4 1310nm 500m DOM MTP/MPO-12 SMF InfiniBand XDR optisches Transceiver-Modul, verwendet in ConnectX-8-Adaptern
P/N: HO-OSFP224-800G-DR4
🔁Compatible Alternatives
Product Details
NVIDIA/Mellanox MMS4A20-XM800 kompatibles 800G OSFP224 DR4 4x 200G PAM4 optisches Transceiver-Modul (1310 nm, 500 m, Single-Port MPO-12/APC-Anschluss, SMF, 0 °C bis +70 °C, DDM)
Das NVIDIA/Mellanox MMS4A20-XM800-kompatible QT-OSFP224-800G-DR4 unterstützt eine maximale Datenrate von 850 Gbit/s. Es ermöglicht Glasfaserverbindungen über 500 m mit Singlemode-Faser (SMF) und MTP/MPO-12-APC-Steckverbindern. Das 800G OSFP224 DR4 unterstützt das InfiniBand-XDR-Protokoll und nutzt die Pulsamplitudenmodulation (PAM) mit vier Kanälen (200G-PAM4).
Dieser Transceiver ist kompatibel mit IEEE 802.3dj, OSFP MSA Specification Rev 5.1 und CMIS Rev 5.2. Die DDM-Funktion (Digital Diagnostics Monitoring) wird vom 800G-Optiktransceiver unterstützt, um eine Echtzeit-Überwachung der Betriebsparameter zu ermöglichen.
Das MMS4A20-XM800 800G OSFP224 DR4-Modul unterstützt das XDR 800Gb/s InfiniBand-Protokoll. Dank seines flachen Designs dient es zur Verbindung der Quantum-X800 QM3x00-Switches mit Twin-Port-OSFP224-Transceivern (2x800Gb/s) und der Dual-800Gb/s-ConnectX-8-Mezzanine-Karte in flüssigkeitsgekühlten Systemen sowie mit ConnectX-8-PCIe-Karten. Die mit NVIDIA InfiniBand kompatiblen Optiken von QSFPTEK sind vollständig in NVIDIA InfiniBand-Hostgeräten getestet und eignen sich ideal für durchgängige InfiniBand-NDR-Systeme.
Specifications
Part Number
HO-OSFP224-800G-DR4
Data Rate
800G
Form Factor
Single-Port OSFP224-RHS/Flat Top
Distance
500m
Wavelength
1310nm
Media
SMF
Connector
MPO-12 APC
Source
EML + PIN
TX Power
-3.3~4.0dBm
Receiver Sensitivity
-6.3dBm
DDM/DOM
Supported
Temperature Range
0-70℃
Quality Assurance
Excellent quality is the foundation of Hooptic’s survival and development. Our operation team are experts with many years’ experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and reliability. E3-Link adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Mechanical Impact
Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleEMI Testing
Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleMTBF Testing
MTBF(Mean Time Between Failures)testing ensures high stability
