Product Details

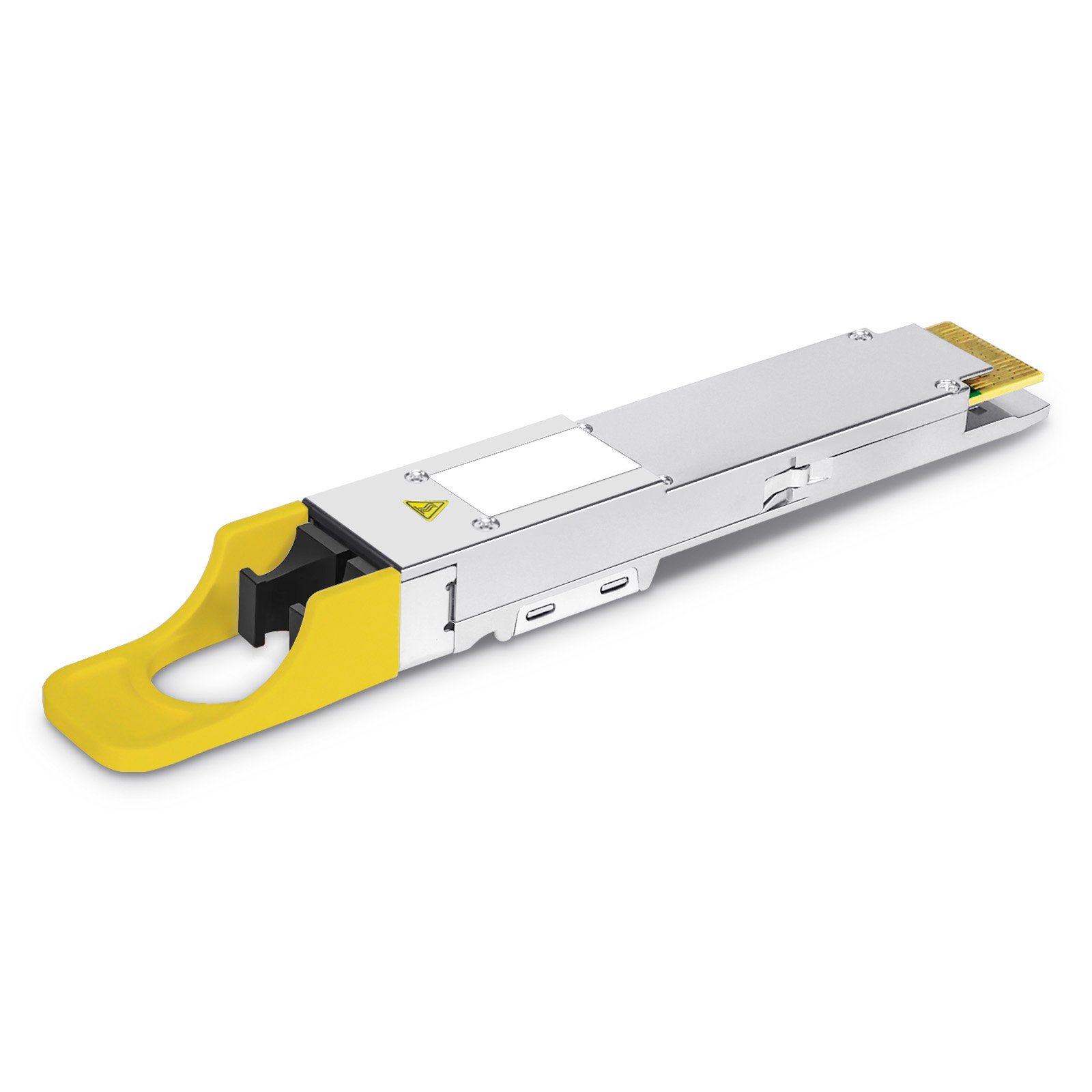

NVIDIA/Mellanox Compatible 1.6T FR8 (2x 800G FR4) OSFP Flat Top PAM4 Twin-port Optical Transceiver Module (1310nm, 2km, 2x duplex LC/UPC Connectors, SMF, 0℃ to +70℃, DDM)
NVIDIA/Mellanox compatible 1.6T OSFP FR8 Twin-port 2x 800G FR4 transceiver module supports a max data rate of 1600 Gbps. It enables the fiber link of 2km over single-mode fiber (SMF) with dual duplex LC/UPC connectors. Hooptic manufactured 1.6T 2x FR4 OSFP complies with IEEE802.3dj D1p3: 2x800GBASE-FR4 optical interface, IEEE802.3dj D1p3: 2x800GAUI-4 C2M electrical interface, OSFP MSA Specification Rev 5.1 RHS type 2, CMIS Rev 5.3 and EU Directive 2011/65/EU (RoHS compliant). The 1.6T signal is carried over 4 wavelengths at 1271nm, 1291nm, 1311nm, and 1331nm.
DDM (digital diagnostics monitoring) function is supported on the 1.6T fiber optic transceiver to achieve real-time operating parameters monitoring. Adopting the Pulse-amplitude Modulation (PAM4) modulation, the FR8 OSFP achieves 1600 Gigabit Ethernet through 8 channels 200G PAM4.
The 1.6T FR8 OSFP supports both Ethernet and InfiniBand XDR end-to-end system applications. Designed for supercomputing and HPC, this 1.6T OSFP transceiver provides high-speed connectivity for compute and storage infrastructure. OSFP-RHS with flat-top design is used in Quantum-3 liquid-cooled switches.
Specifications
Part Number
HO-QSFP-DD-800G-2DR4
Data Rate
1.6T
Form Factor
Twin-port OSFP-RHS/Flat Top
Distance
2km
Wavelength
1310nm
Media
SMF
Connector
Dual Duplex LC
Source
EML + PIN
TX Power
-2.2~4.9dBm
Receiver Sensitivity
-6.2dBm
DDM/DOM
SupportedSupported
Temperature Range
0-70℃
Quality Assurance
Excellent quality is the foundation of Hooptic’s survival and development. Our operation team are experts with many years’ experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and reliability. E3-Link adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Mechanical Impact
Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleEMI Testing
Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleMTBF Testing
MTBF(Mean Time Between Failures)testing ensures high stability
