Temperature Impact
High and low-temperature cycle, aging test to ensure good temperature characteristics
MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module
400GBASE-ER4L QSFP-DD PAM4 1310nm 30km DDM Duplex LC/UPC SMF Optical Transceiver Module
P/N: HO-QSFPDD-ER4L
🔁Compatible Alternatives
Product Details

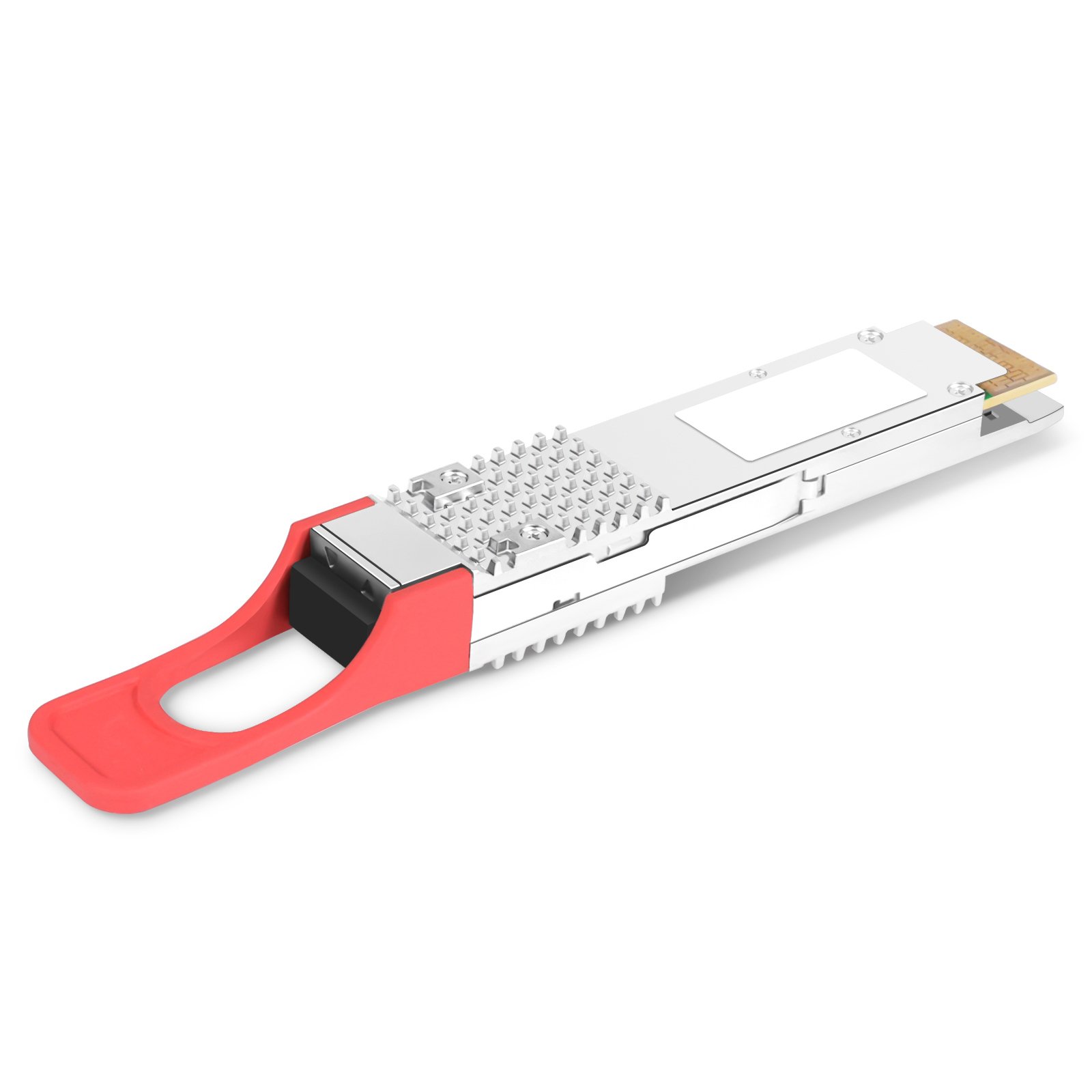

400G QSFP-DD ER4L PAM4 Optical Transceiver Module (1310nm, 30km, 2x Duplex LC UPC Connectors, SMF, 0℃ to +70℃, DDM)
The HO-QSFPDD-ER4L module with Duplex LC UPC connectors, max transmitter distance up to 30km over single-mode fiber. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of LAN-WDM optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission. It is compliant with IEEE 802.3bs protocol and 400GAUI-8, QSFP-DD MSA. The HO-QSFPDD-ER4L module is built with DDM function, which can access operating parameters in real-time. This optical module is suitable for 400G Ethernet and Data Center interconnect.
Specifications
Part Number
HO-QSFPDD-ER4L
Data Rate
400G
Form Factor
QSFP-DD
Distance
30km
Wavelength
1270nm/1330nm
Media
SMF
Connector
Duplex LC
Source
EML+APD
TX Power
0.4~6.5dBm
Receiver Sensitivity
-30dBm
DDM/DOM
Supported
Temperature Range
0-70℃
Quality Assurance
Excellent quality is the foundation of Hooptic’s survival and development. Our operation team are experts with many years’ experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and reliability. E3-Link adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Mechanical Impact
Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleEMI Testing
Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleMTBF Testing
MTBF(Mean Time Between Failures)testing ensures high stability
