Temperature Impact
High and low-temperature cycle, aging test to ensure good temperature characteristics
MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module

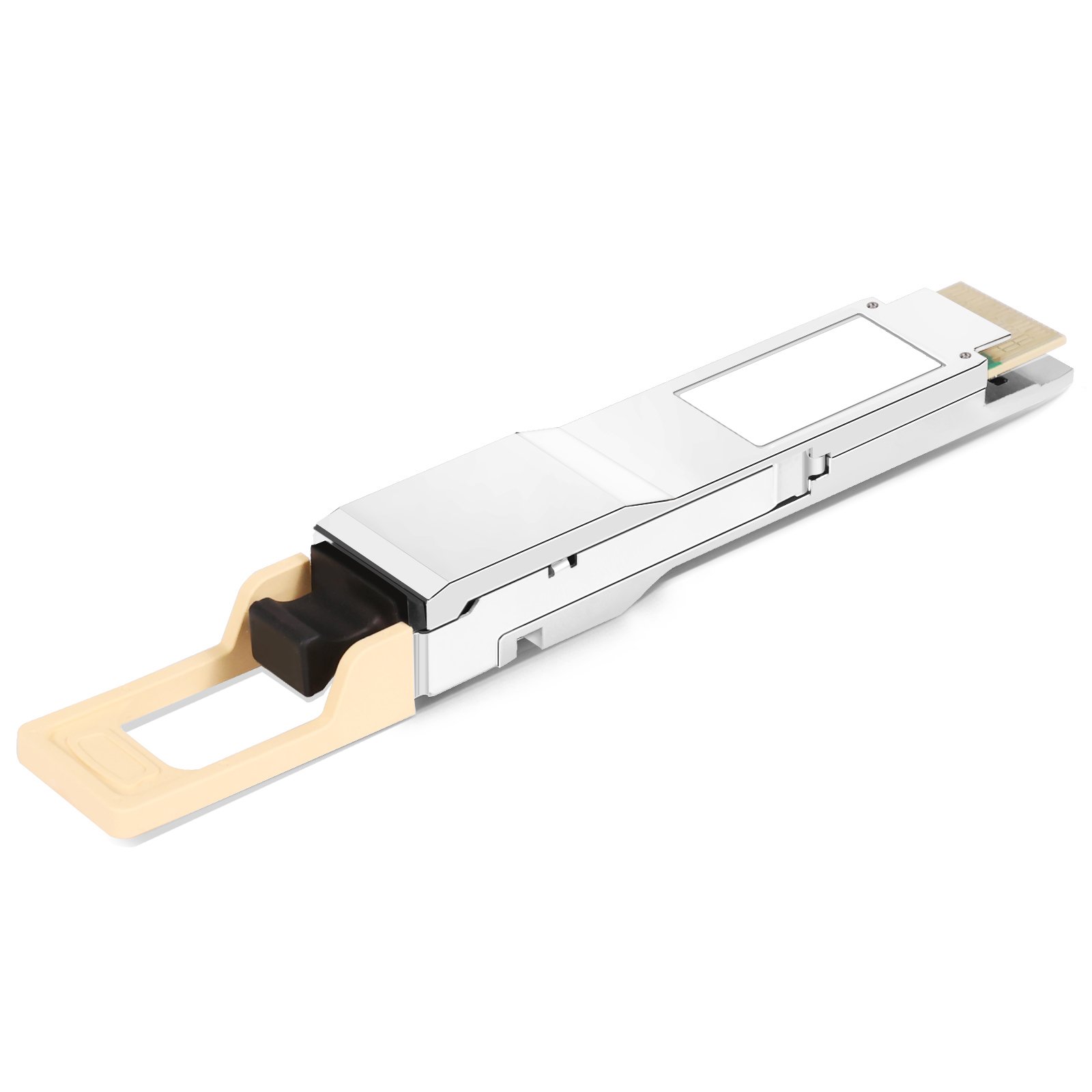

400GBASE-SR4 QSFP-DD PAM4 850nm 100m DOM MPO-12/APC MMF Optical Transceiver Module
P/N: HO-QSFPDD-SR4
🔁Compatible Alternatives
Product Details
400GBASE-SR4 QSFP-DD PAM4 Optical Transceiver Module (MMF, 850nm, 100m, MPO-12 Connector, DOM)
The 400GBASE-SR4 QSFP-DD optical module supports speeds up to 425Gbps, short-range distances reach up to 100m over 12 parallel multimode fiber (MMF) OM4. QDD-400G-VSR4 has an MTP/MPO-12 connector. 400G SR4 is designed based on PAM4 (Pulse Amplitude Modulation 4-level) modulation technology, DSP (Digital Signal Processing) chip, and QSFP-DD form factor. QSFPTEK 400G QSFP-DD SR4 transceiver is fully compliant with QSFP-DD Multi-Source Agreement (MSA), IEEE 802.3bs protocol, and 400GAUI-8-PAM4 standard.
Specifications
Part Number
HO-QSFPDD-SR4
Data Rate
400G
Form Factor
QSFP-DD
Distance
100M
Wavelength
850nm
Media
MMF
Connector
MTP/MPO-12/APC
Source
VCSEL+PIN
TX Power
-4.6~4dBm
Receiver Sensitivity
-6.4dBm
DDM/DOM
Supported
Temperature Range
0-70℃
Quality Assurance
Excellent quality is the foundation of Hooptic’s survival and development. Our operation team are experts with many years’ experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and reliability. E3-Link adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Mechanical Impact
Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleEMI Testing
Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleMTBF Testing
MTBF(Mean Time Between Failures)testing ensures high stability
